DCGF32-32-10
Meetyou
842230
Introduction of Production:
Introduction

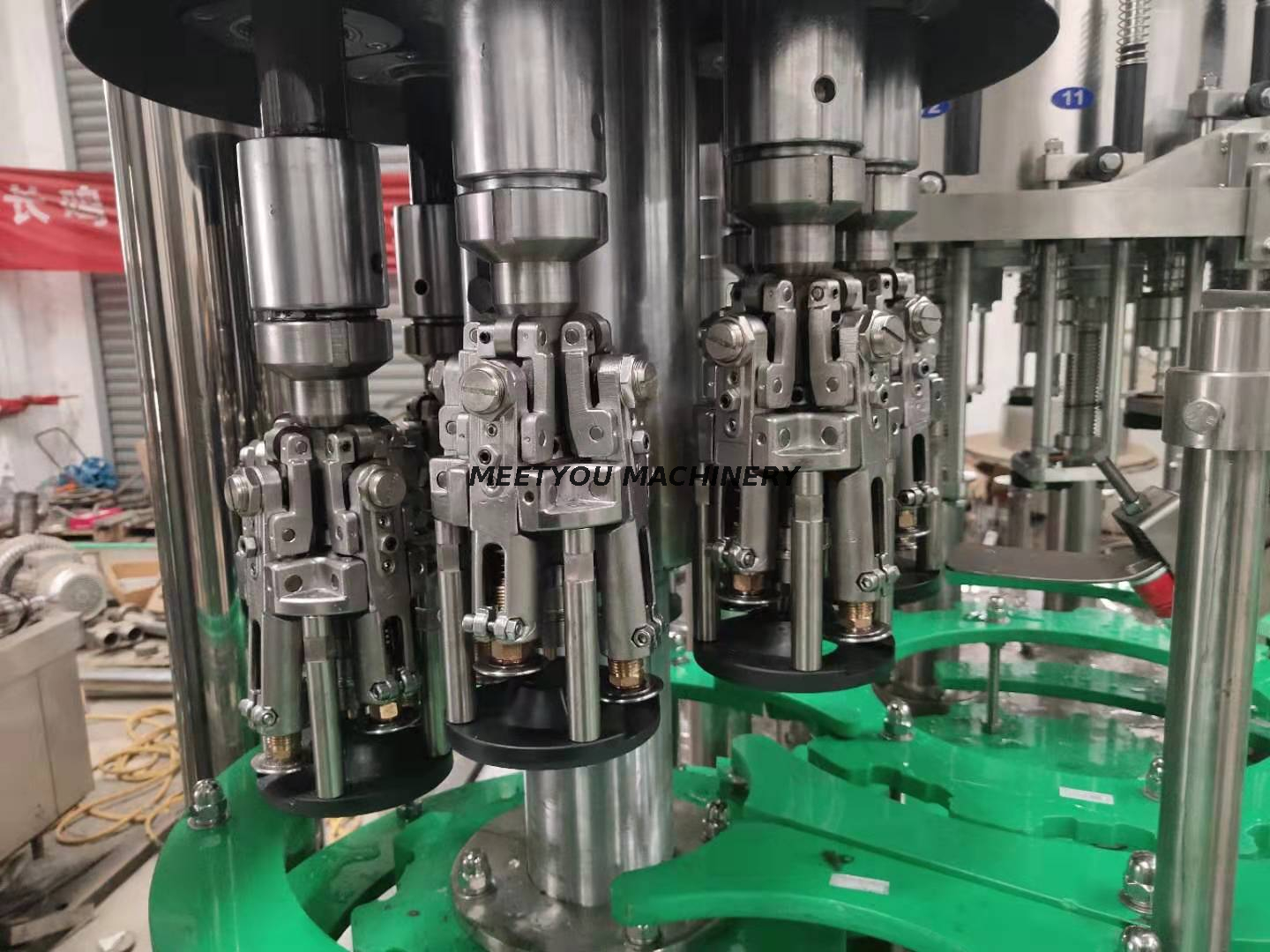

This machine is the introduction of foreign advanced technology design and manufacture of washing filling capping 3 in 1 monoblock machine. The clamp for rinsing bottle is the introduction from Italian technology, with high accuracy for manufacturing, accurately filling level and small loss of fluid, especially suitable for high speed filling; Screw cap system is introduction of France technology manufacturing, using magnetic screw cap, adjustable torque, a synchronous take cover - screw cover device, cover loss is small.
Feature:
1, Drive system is simple: uses ntegral bedplate, good rigidity structure, easy to wash and clean, the whole machine adopts hanging bottle bottleneck conveying structure transmission, transmission system space is big, easy to maintenance; The centralized lubrication system, more convenient and simple for maintenance.

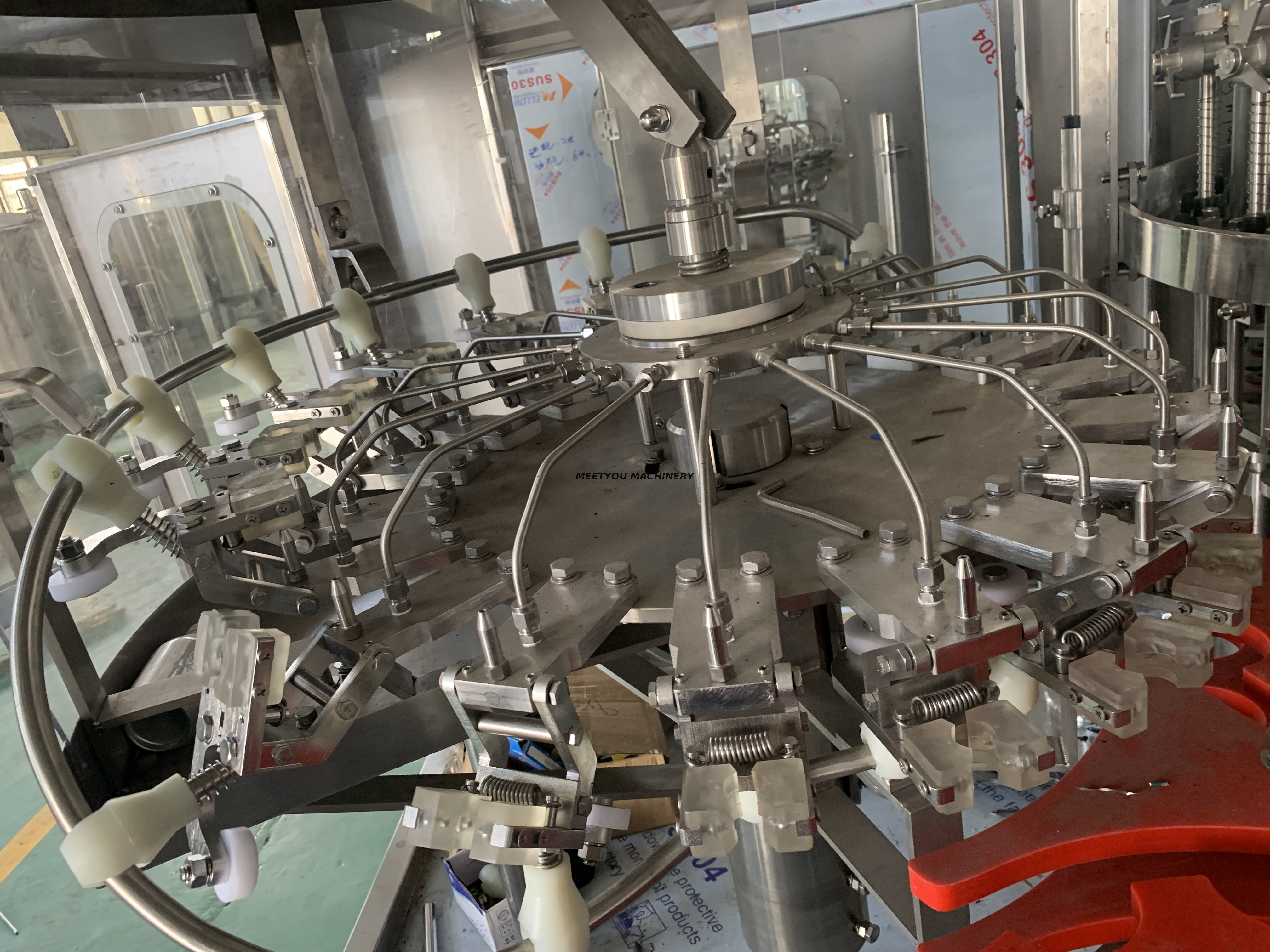

2, Bottle-washing machine with the spring structure: when empty bottles are automatically rotated in a 180°semi-circle on the track, it washes the bottle inside in a complete and efficient way.

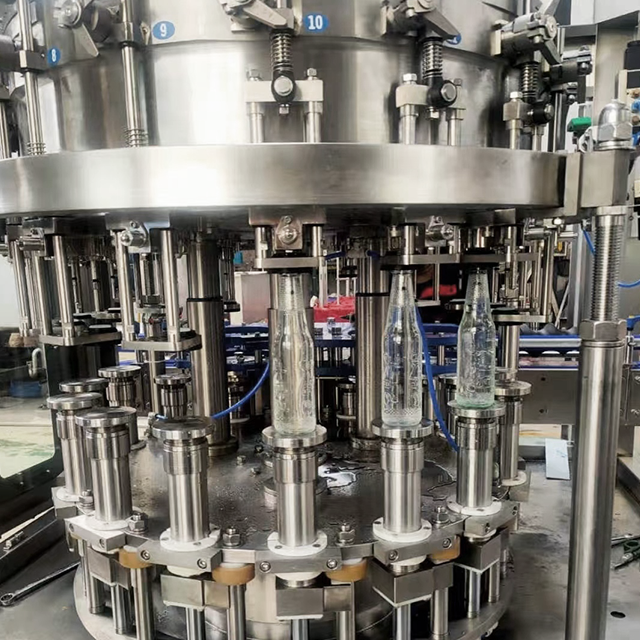

3, Accurate position alignment during filling process: fastening the bottleneck during filling process and function of centering bell both guarantee the accurate sealing between bottleneck and filling tap. Leakage resulted from inclined bottles with angles in the bottom-based way is avoided. Material loss is truly reduced.
4, Accurate control in liquid level: liquid level in the bottle is measured by liquid-level testing device with a probe. Consistent liquid level in the bottle during filling process is maintained through automatic control of variable signal.
5, Accurate speed adjustment: speed adjustment is accurate and stable during launch and producing processes by using advanced frequency converter. Filling speed is digitally displayed. PC program control is used in the complete machine with a high automatic level.
6, Healthy structure: quality stainless steel is used in all parts that contact beverage; All pipelines contact with gas and liquid use Inside and outside polishing pipe; All seal ring contact with the beverage use food-stage nitrile rubber or silicon rubber, meeting health requirements.
7, Cylinder height adjustment quickly: the design can be filling Glass bottle in a wide range of specifications, fast regulating device for the filling the cylinder height adjustment, change the bottle type fast and convenient
8, Change bottles in a swift and convenient way: quick-opening structure is used, making it swift and convenient in changing bottles, which is suitable for all kinds of bottles.
9, Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps, and no bottle no caps.
Main Technical Specifications：
Application | Carbonated Drink with gas |
Bottle Type | Glass Bottle |
Suitable bottle | Bottle with size 200ml to 1500ml |
Bottle Height | Bottle height. Φ160—φ340mm |
Bottle Diameter | Bottle dia.φ50-φ90mm |
Type | DCGF32-32-10 |
Supply Capacity | 7000-9000 bottles per hour(500ML bottle) |
Rinsing Head | 32pcs |
Filling Head | 32pcs |
Capping Head | 10pcs |
Filling style | Vacuum hot filling |
Voltage | 380V |
Automatic Grade | Full automatic |
Driven Type: Electric | Electric |
Power | 7.5KW |
Dimension | 3800*2200*2300mm(L*W*H) |
Weight | 7500KG |
Main components brand
| No. | Name | Brand |
| 1 | Touch screen | Siemens, Germany |
| 2 | Transducer | Siemens, Germany |
| 3 | Main electric appliance | Siemens, Germany |
| 4 | PLC | Siemens, Germany |
| 5 | Contactor | Siemens, Germany |
| 6 | Sensor | Autonics, Korean |
| 7 | Proximity Sensor | Autonics, Korean |
| 8 | Fiber Swith | Autonics, Korean |
| 9 | Pneumatic component | Airtac, Taiwan China |
